High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer
High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer
High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer
Contact Now

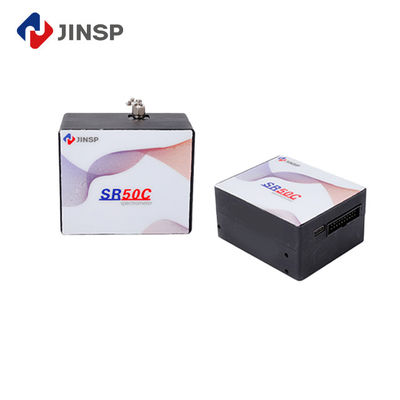

High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer

Minimum Order Quantity : 1 Price : USD1200- USD1300
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

High Performance Fiber Optic Spectrometer

,

High Performance Compact Fiber Spectrometer

,

Industrial Fiber Optic Spectrometer

Product Description

High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer
Key Specifications
Spectral Range 200-1100 nm
Integration Time 1 ms - 60 s
Signal-to-Noise Ratio 650:1 (4ms)
Dimensions 76mm × 65mm × 38mm
Product Overview

The SR50C Compact Modular Fiber Optic Spectrometer offers environmental engineers dual-mode capability for measuring absorption/reflection spectra in comprehensive water analysis applications. Its thermally stabilized optical design maintains ±0.02nm accuracy despite ambient fluctuations, making it ideal for long-term phosphorus trend monitoring in aquatic environments.

With 16-bit dynamic range and <5ms integration time, this spectrometer detects subtle spectral shifts caused by organic pollutants. The modular architecture simplifies integration into existing water quality platforms while reducing maintenance costs compared to traditional wet chemistry methods.

Technical Specifications
Detector Parameters
Chip Type Linear array CMOS, Hamamatsu S11639
Effective Pixel 2048
Pixel Size 14μm × 200μm
Sensing Area 28.7mm × 0.2mm
Optical Parameters
Numerical Aperture 0.14
Focal Length ≤ 50mm
Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface SMA905, free space
Electrical Parameters
Integration Time 1ms-60s
Signal-to-Noise Ratio 650:1 (4ms)
Data Output Interface Type-C
ADC Bit Depth 16-bit
Power Supply DC 4.5V to 5.5V (type @5V)
Operating Current < 500mA
Environmental Specifications
Operating Temperature 10°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Operating Humidity <90%RH (no condensation)
Dimensions 79mm × 68mm × 42mm
Weight 220g
Product Models
Model Spectral Range (nm) Resolution (nm) Slit (μm)
SR50C-G01 200~1000 (UV-NIR) 3.5 / 2.4 / 1.5 50 / 25 / 10
SR50C-G03 350~870 (VIS) 2.5 / 2.0 / 1.2 50 / 25 / 10
SR50C-G04/G07/G08 200~550 (UV)
350~700 (VIS)
780~1050 (NIR)		 1.8 / 1.3 / 0.8 50 / 25 / 10
SR50C-G09/G10 200~450 (UV)
525~700 (VIS)		 1.0 / 0.6 / 0.3 50 / 25 / 10

* Custom spectral ranges available upon request

Key Features
  • Wide spectral range supporting 200-1100nm measurements
  • High signal-to-noise ratio with low-noise CMOS processing
  • Thermally stabilized optical design for consistent accuracy
  • Modular architecture for easy system integration
  • 16-bit dynamic range for precise measurements
Applications
  • Absorption, transmittance and reflectivity measurements in UV-VIS-NIR
  • Light source and laser wavelength identification
  • Environmental monitoring (smoke and water quality analysis)
  • LIBS, fluorescence and Raman spectroscopy
  • OEM integration for analytical instrumentation
Product Images
High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  0 High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  1 High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  2 High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  3 High Performance Industrial Fiber Optic Spectrometer Compact Fiber Spectrometer  4
Company Profile

JINSP Company Limited has received numerous awards including the National Science and Technology Commission's Scientific Achievement Certificate, China Patent Excellence Award, Geneva International Invention Award, and the Zhu Liangyi Analytical Instrument Innovation Award.

Our products comply with GB/T 40219-2021 "General Specification for Raman Spectrometer" and we maintain ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. Additional certifications available include CE, ECAC, and various environmental and security testing certifications.

We maintain a customer-centric approach, working closely with clients from concept to final product to ensure all specifications are met and expectations exceeded.

Frequently Asked Questions
Q: What is the brand name of this fiber spectrometer?
A: JINSP is the brand name of this fiber spectrometer.
Q: What is the model number of this fiber spectrometer?
A: The model number is SR50C.
Q: What certification does this fiber spectrometer have?
A: This spectrometer has CE certification.
Q: Where is this fiber spectrometer made?
A: This spectrometer is manufactured in China.
Q: What are the payment terms for this product?
A: We accept T/T and Western Union payments. Prices are negotiable.
