SR50C Compact Raman Spectrometer Customized For Scientific Research

Contact Now

SR50C Compact Raman Spectrometer Customized For Scientific Research

Minimum Order Quantity :	1	Price :	USD1200- USD1300
Packaging Details :	International Shipping Package	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/30-50 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50C

Detail Information
Wavelength Range:	200nm ~ 1100nm, Support Customizing	Detector Chip Type:	Linear Array CMOS, Hamamatsu S11639
Weight:	220g	Fiber Input:	FC/PC Or SMA905
PIntegration Time:	1ms-60s	Signal-to-Noise Ratio:	650:1(4ms）
Highlight:	SR50C Compact Raman Spectrometer , SR50C Miniature fiber spectrometer , Customized Compact Raman Spectrometer

Product Description

SR50C Compact Raman Spectrometer Customized For Scientific Research

Key Specifications

Wavelength Range	200nm ~ 1100nm, support customizing
Detector Chip Type	Linear array CMOS, Hamamatsu S11639
Weight	220g
Fiber Input	FC/PC or SMA905
Integration Time	1ms-60s
Signal-to-Noise Ratio	650:1(4ms)

Product Overview

The JINSP SR50C Miniature Fiber Optic Spectrometer is designed for high-performance spectral analysis across the 200–1100nm range, enabling precise measurement of reflection, transmission, and absorption spectra. Its modular design allows for interchangeable grating slits to optimize resolution for UV, Visible, and near-Infrared applications.

Advanced Features

Fast, low-noise signal processing circuit for superior SNR
Blazed diffraction grating for enhanced luminous flux
Integrated temperature sensor with drift compensation
Compact design (79×68×42mm) weighing only 220g
Type-C data interface and low power consumption (<500mA)

Technical Specifications

Detector Parameters
Chip Type	Linear array CMOS, Hamamatsu S11639
Effective Pixel	2048
Pixel Size	14μm × 200μm
Sensing Area	28.7mm × 0.2mm
Optical Parameters
Numerical Aperture	0.14
Focal Length	≤ 50mm
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface	SMA905, free space

Model Variations

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR50C-G01	200~1000 (UV-NIR)	3.5 / 2.4 / 1.5	50 / 25 / 10
SR50C-G03	350~870 (VIS)	2.5 / 2.0 / 1.2	50 / 25 / 10
SR50C-G04/G07/G08	200~550 (UV) 350~700 (VIS) 780~1050 (NIR)	1.8 / 1.3 / 0.8	50 / 25 / 10
* Custom spectral ranges available upon request

Applications

UV-Vis-NIR spectral analysis (absorption, transmission, reflection)
Light source and laser wavelength identification
Environmental monitoring (air/water quality assessment)
Laser-Induced Breakdown Spectroscopy (LIBS)
Fluorescence and Raman spectroscopy

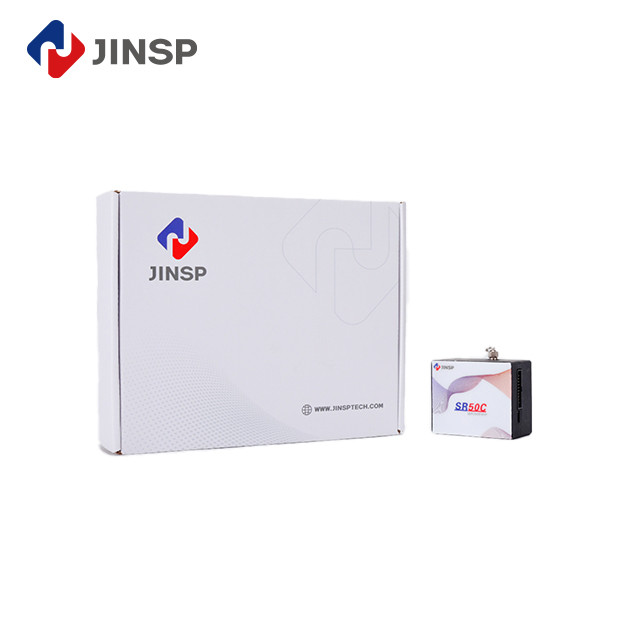

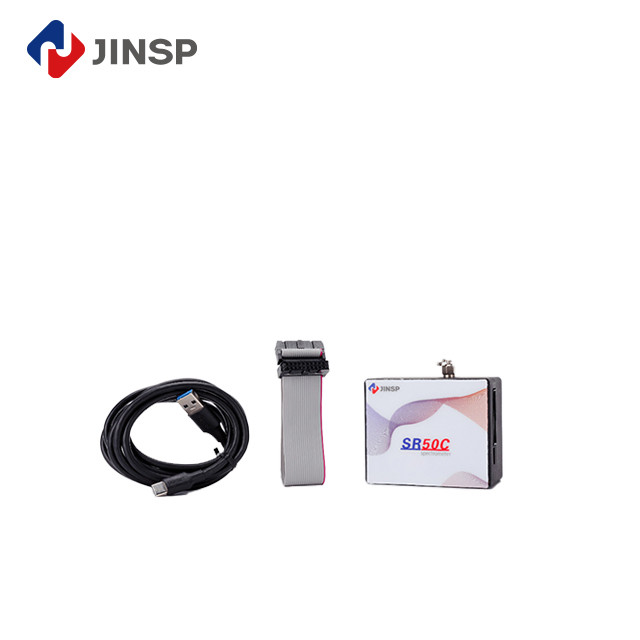

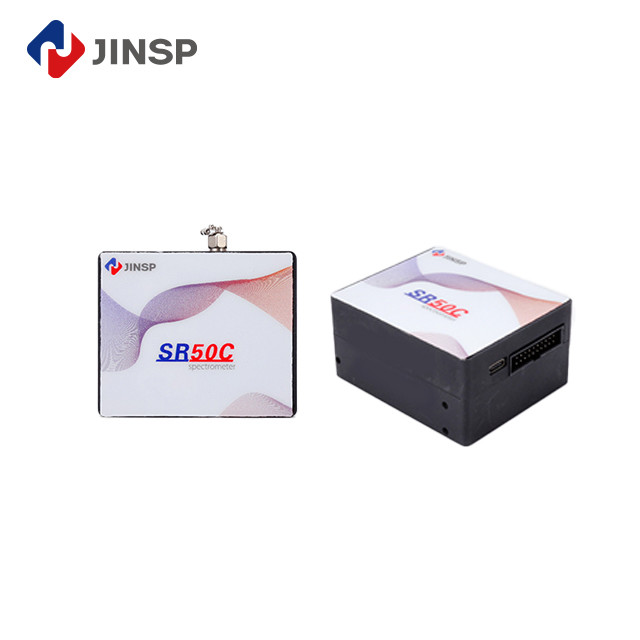

Product Images
