Universal Compact Raman Spectrometer Reliable Use In Research Laboratories
Universal Compact Raman Spectrometer Reliable Use In Research Laboratories
Universal Compact Raman Spectrometer Reliable Use In Research Laboratories Universal Compact Raman Spectrometer Reliable Use In Research Laboratories Universal Compact Raman Spectrometer Reliable Use In Research Laboratories Universal Compact Raman Spectrometer Reliable Use In Research Laboratories Universal Compact Raman Spectrometer Reliable Use In Research Laboratories
Contact Now

Universal Compact Raman Spectrometer Reliable Use In Research Laboratories

Minimum Order Quantity : 1 Price : USD1200- USD1300
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR75C

Detail Information
Detector Type: Linear Array CMOS, Hamamatsu S11639 Pixel Size: 14μm *200μm
Optical Design: Type M C-T Light Path Grating Slits: 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Fiber Input Interface: SMA-905, Free Space Dimension: 110mm*95mm*43mm
Highlight:

Universal Compact Raman Spectrometer

,

Universal Miniature Fiber Optic Spectrometer

,

Reliable Compact Raman Spectrometer

Product Description

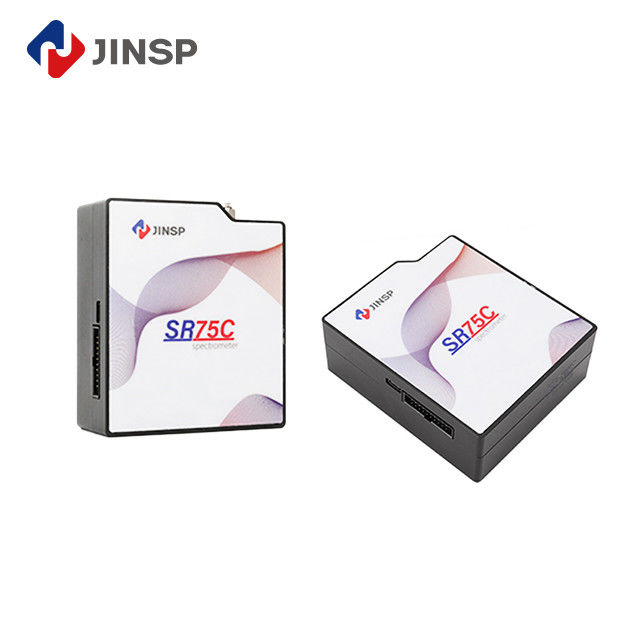

Multi-purpose Compact SR75C Fiber Optic Modular Spectrometer

The SR75C Universal Compact Fiber Spectrometer is an optic spectrometer that is designed to deliver accurate and reliable results. It is ideal for use in research laboratories, manufacturing facilities, and other applications where precise spectral analysis is required. With this fiber spectrometer, you can easily measure the wavelength and intensity of light, and use this information to determine the properties of a sample.



Are you looking for a high resolution modular spectrometer for your LIBS system?

Product Parameters:

  Performance Indicators Parameters
Detector Chip Type Linear array CMOS, Hamamatsu S11639
Effective Pixel 2048
Pixel Size 14μm *200μm
Sensing Area 28.7mm *0.2mm
Optical
Parameters		 Optical Design M Type C-T light path
Numerical Aperture 0.085
Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm
(customizable)
Spectrum Range and Resolution See model table for details
Fiber Input Interface SMA905, free space
Electrical
Parameters		 Integration Time 1ms-60s
Signal-to-Noise Ratio 650:1 (4ms)
Data Output Interface USB 2.0 or serial port
ADC Bit Depth 16-bit
Power Supply DC 4.5V to 5.5V (type @5V)
Operating Current < 500mA
Others Operating Temperature 10°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Operating Humidity ＜90%RH (no condensation)
Dimensions 110mm*95mm*40.5mm
Weight 310g



Model

Spectral Range (nm)

Resolution (nm)

Slit (μm)

SR75C-G02

510~1000
(VIS-NIR)

0.8

25

0.5

10

SR75C-G04

SR75C-G06

SR75C-G07

SR75C-G08

SR75C-G09

SR75C-G10

200~450(UV)
330~570(VIS)

550~750(VIS)

750-900(NR)

0.3-0.5

25

0.2-0.3

10

180~340( UV)
500~600(VIS)

0.3

25

0.15~0.2

10

* Customization available for other ranges



Technical Characteristic:

  • Wide Spectral Range Supports customized spectrum range of 200-1000nm
  • High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
  • High Resolution M-shape C-T optical design

Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 0Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 1Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 2

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 3
Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 4Universal Compact Raman Spectrometer Reliable Use In Research Laboratories 5


FAQ:

Q1: What is the brand name of the compact fiber spectrometer?

A1: The brand name of the compact fiber spectrometer is JINSP.

Q2: What is the model number of the compact fiber spectrometer?

A2: The model number of the compact fiber spectrometer is SR75C.

Q3: What certifications does the compact fiber spectrometer have?

A3: The compact fiber spectrometer has CE certification.

Q4: Where is the compact fiber spectrometer manufactured?

A4: The compact fiber spectrometer is manufactured in China.

Q5: What is the minimum order quantity for the compact fiber spectrometer?

A5: The minimum order quantity for the compact fiber spectrometer is 1. However, the price is negotiable for larger orders.

Q6: What are the payment terms for purchasing the compact fiber spectrometer?

A6: The payment terms for purchasing the compact fiber spectrometer are T/T and Western Union.
