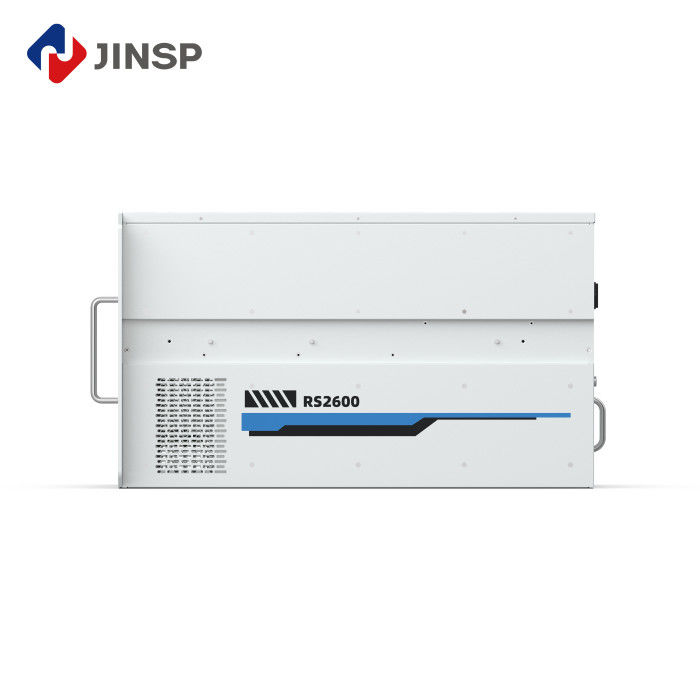

RS2600 Multi-gas Analyzer - Real Time Raman Spectroscopy for Non-Destructive Multi Gas Analysis
| Attribute |
Value |
| Model Name |
RS2600 Multi-gas Analyzer |
| Laser excitation wavelength |
532 ± 0.5nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Detection Limit |
ppm level |
| Measurement Time |
Real-time |
Raman Spectroscopy Multi-gas Analyzer for Simultaneous Online Analysis
As the most versatile gas analyzer available, the RS2600 serves diverse industries with unified precision. From petrochemical alkanes to metallurgical CO/H₂ blends, its universal detection architecture requires no hardware changes between applications. The patented pressure compensation algorithm ensures reliable readings despite fluctuating process conditions.
Facilities handling corrosive (HF), explosive (CH₄), or rare gases (DT) all benefit from its instantaneous, in-situ analysis. With configurable alarm thresholds and <3-second cycle times, it becomes both safety guardian and process optimization tool across oil refineries, semiconductor fabs, and research laboratories.
Technical Specifications
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Input voltage |
100~240 VAC,50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight |
40 kg |
Technical Highlights
- Non-destructive gas analysis: Analytes including homonuclear diatomic gases(F2, Cl2, etc.) and isotopic gases (H2, D2, T2, etc.)
- Short detection time: Data acquired in seconds
- Minimal maintenance: Resistance to high pressure, direct detection without consumables (chromatographic column or carrier gas)
- Wide detection range: LOD at ppm level, detection range up to 100%
Main Applications
1. Monitoring of F2, N2, HF and other components in the fluorination process
2. Quantitative analysis of different Elements in Petrochemical Natural Gas
Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.
3. Detection of components in reaction and emitted gases of fluorine materials
4. Detection of impurity gases and electronic special gases
Gas Analyzer Features
- By constructing quantitative models of multiple standard curves and combining them with chemometric methods, the correlation between spectral signals and the content of various component substances can be effectively established.
- Even in the case of changes in sample gas pressure or fluctuations in testing conditions, this quantitative analysis method can still maintain the accuracy of the results due to its high stability and robustness.
Company Introduction
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.
Frequently Asked Questions
Q: This is the first time I use, is it easy to operate?
A: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.
Q: Can you offer a operation training?
A: Your technicians can come to our factory for a training. Jinsp technical engineers or local distributor engineers can go to your place for local support (installation, training, debugging, maintenance).
Q: How to receive a best price in the shortest time?
A: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length and so on. We will send you quotation with details soon to your email.
Q: Do you have MOQ requirement of each order?
A: No, we support order for even 1pc order.
Q: What is the product warranty?
A: All product has 1 year warranty, support extending warranty period with extra cost. Please contact with our sales person.
