High Accuracy Handheld Raman Spectrometer Lightweight Non Invasive Analysis
Product Specifications
| Attribute |
Value |
| Laser wavelength |
1064nm |
| Response speed |
~15s |
| Standard Accessories |
Solid cap, Liquid vial holder, Polystyrene standard sample |
| Spectral Library |
＞13000 |
| Weight |
730g |
| Battery /Power Supply Mode |
Rechargeable lithium-ion batteries 4 ~ 6 hours |

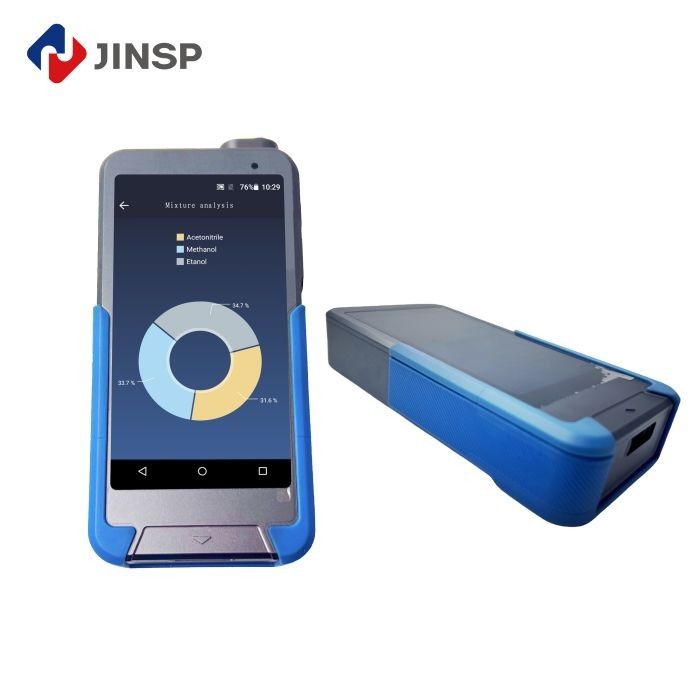

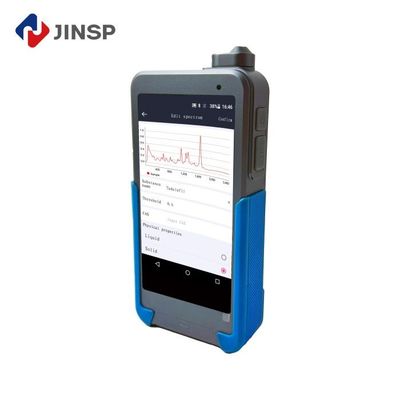

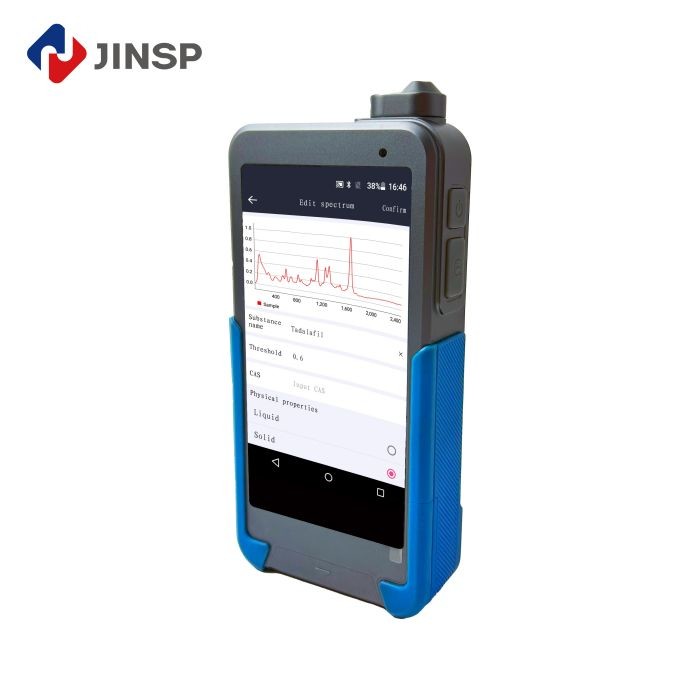

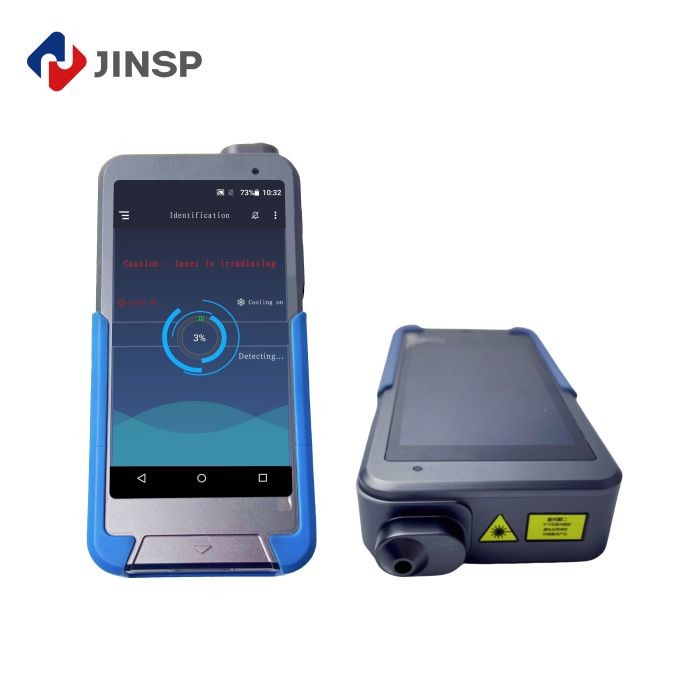

RS1500DI Handheld Raman Spectrometer
Multiple pharmacopoeial standards recognize Raman spectroscopy for its dual capacity in excipient validation and crystalline structure characterization. The technique facilitates intact package analysis, continuous manufacturing monitoring, and anti-counterfeiting measures through fluorescence signatures. These attributes directly address global requirements for individual container-level material identification.
Production Specifications
| Laser |
1064nm |
| Size |
176mm*87mm*33mm |
| Weight |
730g |
| Connection |
Wi-Fi,4G,Bluetooth,Micro-USB |
| Operation |
5' Touch Screen, big button, intuitive man-machine interface operation |
| Power Supply |
Rechargeable lithium battery,4-6h |
| Detection Range |
Chemical ram materials; Pharmaceutical excipients; Packing materials; Biochemical raw materials; Pigment excipients |
| Result |
Name, Property, Spectrum, MSDS, Result-report |
Technical Features
- Rapid detection capability: completes identification within seconds
- Non-invasive analysis: detects through various packaging materials including glass, woven bags, and plastics
- Portable design: lightweight construction enables flexible movement across different work environments
- Instant analysis: eliminates sample preparation requirements, ensuring safety and simplicity
- Precision recognition: utilizes advanced machine learning algorithms for accurate identification with high specificity
Wide Detection Range
- Chemical raw materials: aspirin, folic acid, nicotinamide, etc.
- Pharmaceutical excipients: salts, alkalis, sugars, esters, alcohols, phenols, etc.
- Packaging materials: polyethylene, polypropylene, polycarbonate, ethylene-vinyl acetate copolymer, etc.
- Biochemical raw materials: amino acids and their derivatives, enzymes and coenzymes, proteins,etc.
- Pigment excipients: carmine, carotene, curcuminchlorophyll, etc.
- Other polymer excipients: gelatin, microcrystalline cellulose, etc.
Company Introduction
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.
Frequently Asked Questions
Q: What is the brand name of the pharmaceutical spectrometer?
A: The brand name of the pharmaceutical spectrometer is JINSP.
Q: What is the model number of pharmaceutical rapid identification?
A: The model number of the pharmaceutical spectrometer is RS1500DI.
Q: Is the pharmaceutical rapid identification Spectrometer certified?
A: Yes, It is and it is certified with CE as well.
Q: Do you have MOQ requirement of each order?
A: No, we support order for even 1pc order.
Q: What is the product warranty?
A: All product has 1 year warranty, support extending warranty period with extra cost.
