1064nm Compact Raman Spectroscopy Analyzer Handheld Portable Raman Spectrometer
Product Specifications
| Laser wavelength |
1064nm |
| Spectral Bandwidth |
0.5 cm-1 |
| Wavelength repeatability |
0.1 cm-1 |
| Function |
Qualitative identification of compounds |
| Response speed |
~15s |
| Survivability |
IP68 |

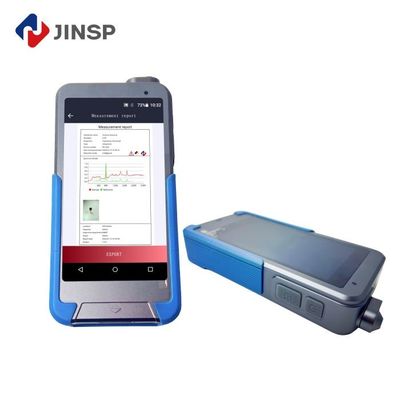

RS1500DI 1064nm Handheld Raman Spectrometer for Pharmaceutical Applications
The JINSP RS1500DI performs 100% package-by-package inspection of both raw materials and packaging materials. It enables rapid identification of materials in warehouses, preparation rooms, and production workshops, facilitating quick material release for pharmaceutical companies.
The 1064nm laser effectively minimizes fluorescence interference that commonly obstructs proper chemical identification and analysis of excipients.
RS1500DI complies with FDA 21 CFR Part11 and GMP regulations.
Technical Parameters
| Laser |
1064nm |
| Size |
176mm × 87mm × 33mm |
| Weight |
730g |
| Connection |
Wi-Fi, 4G, Bluetooth, Micro-USB |
| Operation |
5" Touch Screen with intuitive interface |
| Power Supply |
Rechargeable lithium battery (4-6h operation) |
| Detection Range |
Chemical raw materials, pharmaceutical excipients, packaging materials, biochemical raw materials, pigment excipients |
| Result Output |
Name, Property, Spectrum, MSDS, Result-report |
Technical Features
- Rapid identification within seconds
- Non-destructive testing through glass, woven bags, plastic and other packaging
- Compact and lightweight design for flexible movement in various environments
- Real-time sampling without preparation requirements
- Advanced machine learning algorithms ensure accurate recognition with strong specificity
Detection Range
- Chemical raw materials: aspirin, folic acid, nicotinamide
- Pharmaceutical excipients: salts, alkalis, sugars, esters, alcohols, phenols
- Packaging materials: polyethylene, polypropylene, polycarbonate
- Biochemical raw materials: amino acids, enzymes, proteins
- Pigment excipients: carmine, carotene, chlorophyll
- Polymer excipients: gelatin, microcrystalline cellulose
Compared to standard 785nm Raman spectrometers, the RS1500DI offers superior detection capabilities with reduced fluorescence interference.
About JINSP
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology, specializing in Raman, FT-IR, and LIBS technologies. With over 200 patent applications, our core technologies are internationally competitive.
We offer more than twenty spectroscopic products serving pharmaceutical, chemical, public security, and customs sectors. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Our R&D team of 30+ engineers, including 4 Ph.D. holders, enables us to provide customized solutions to meet diverse customer requirements.
Frequently Asked Questions
Q: What is the brand name of the pharmaceutical spectrometer?
A: The brand name is JINSP.
Q: What is the model number of pharmaceutical rapid identification?
A: The model number is RS1000DI.
Q: Is the pharmaceutical rapid identification Spectrometer certified?
A: Yes, it is CE certified.
