IT2000CE Compact Ftir Spectrometer Advanced For Situ Monitoring Chemical Reactions

Contact Now

IT2000CE Compact Ftir Spectrometer Advanced For Situ Monitoring Chemical Reactions

Minimum Order Quantity :	1	Price :	USD40000 - USD100000
Packaging Details :	International Shipping Package	Delivery Time :	60-80 working days
Payment Terms :	L/C, T/T	Supply Ability :	50 PCS/70-90days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	IT2000CE

Detail Information
Spectral Range:	500 ~ 5000 Cm-1	Resolution:	2 Cm-1, 4 Cm-1, Or 8 Cm-1
Sample Suitability:	Strong Acid/alkali And Strong Corrosive Liquid Samples Can Be Analyzed	Display Screen:	10.5 Inch Capacitive Touchscreen, Supporting Multi-point Touch And Multi-angle Folding
Weight:	≤15 Kg	Unit Dimensions:	51 Cm (Length) × 30 Cm (Width) × 25 Cm (Height)
Operating Temperature:	10 - 40°C	Certifications:	CE ISO9001
Highlight:	IT2000CE Compact Ftir Spectrometer , IT2000CE portable ftir spectrometer , Advanced Compact Ftir Spectrometer

Product Description

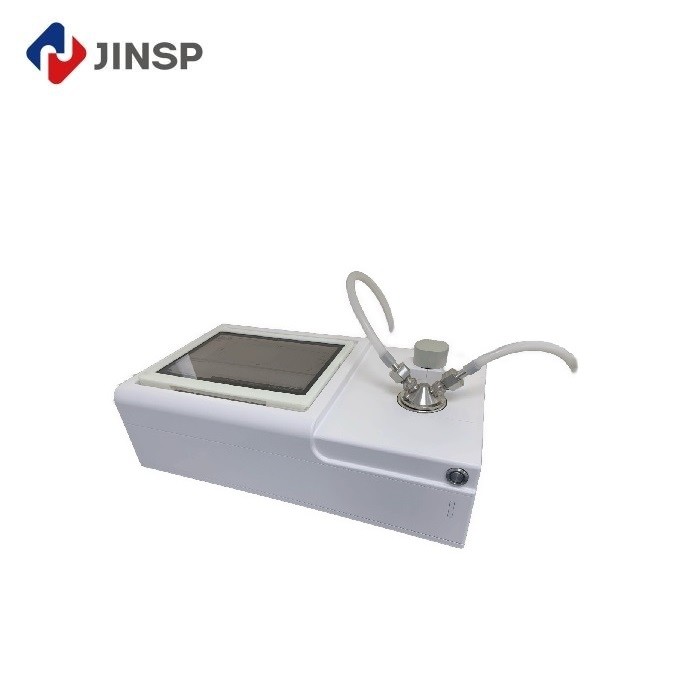

IT2000CE Compact FTIR Spectrometer for In Situ Chemical Reaction Monitoring

Product Specifications

Spectral range	500 ~ 5000 cm^-1
Resolution	2 cm^-1, 4 cm^-1, or 8 cm^-1
Sample suitability	Strong acid/alkali and strong corrosive liquid samples
Display screen	10.5 inch capacitive touchscreen with multi-point touch and multi-angle folding
Weight	≤15 kg
Dimensions	51 cm (L) × 30 cm (W) × 25 cm (H)
Operating Temperature	10 - 40°C
Certifications	CE ISO9001

Advanced Process FTIR Analyzer

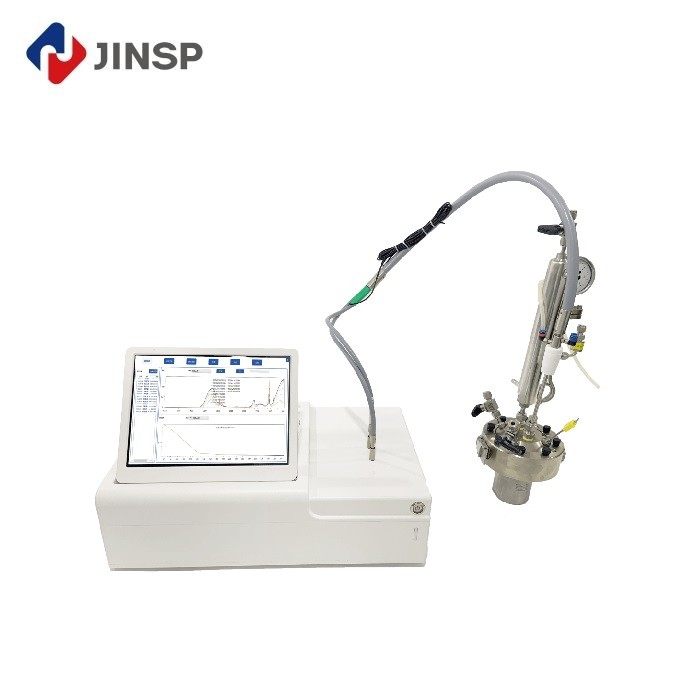

The JINSP® IT2000CE online FT-IR analyzer is designed for in situ monitoring of chemical reactions, enabling continuous measurement of reactants, residues, products, intermediates, and impurities. This provides real-time insights into reaction progression, allowing prediction of reaction rates, conversion rates, and optimal termination points.

Technical Parameters

Parameter	Flow cell version	Immersion probe version
Dimension	51cm(width)×30cm(depth)×25cm(height)
Weight	≤15 kg
Spectral resolution	2 cm^-1, 4 cm^-1, 8 cm^-1 optional
Sample type	Strong acid, strong alkali, strong corrosive
Screen	10.5-inch capacitive touch screen with multi-touch and multi-angle folding
Spectral range	500-5000 cm^-1	600-1800 cm^-1
Temperature range	-50℃ ~ 100℃	-150℃~ 230℃
Pressure range	2 MPa	10 MPa

Key Features

Highly applicable for various chemical processes
Fast data acquisition in seconds
Real-time display of reactant and product dynamics
Simultaneous measurement of multiple components
Intelligent algorithm for automatic FT-IR spectra analysis

Reaction Monitoring Capabilities

Real-time analysis during data collection
Multiple absorption peak marking with real-time component change display
Flexible online monitoring platform
Embedded quantification model for real-time concentration monitoring

About JINSP Company

JINSP Company Limited has received numerous awards including the National Science and Technology Commission's Scientific Achievement Certificate, China Patent Excellence Award, and Geneva International Invention Award. The company has participated in drafting several national and international standards including IEC 63085 and GB/T standards for spectroscopic analysis.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide an English manual and instructional video, along with professional technical operation meetings with our technicians.

Q: Do you offer operation training?

A: Yes, your technicians can train at our factory or our engineers can provide on-site support including installation, training, and debugging.

Q: How can I receive the best price quickly?

A: Please provide detailed specifications (wavelength, detector, pixels, focal length etc.) in your inquiry for an accurate quotation.

Q: What if the spectrometer has problems during operation?

A: The spectrometer comes with a one-year warranty. Our technicians will diagnose and repair any issues free of charge during this period.

Q: Which payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
