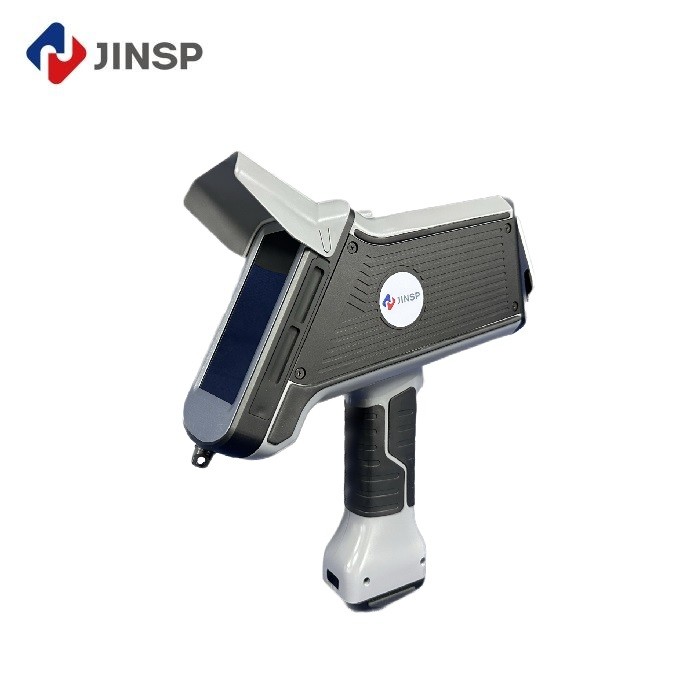

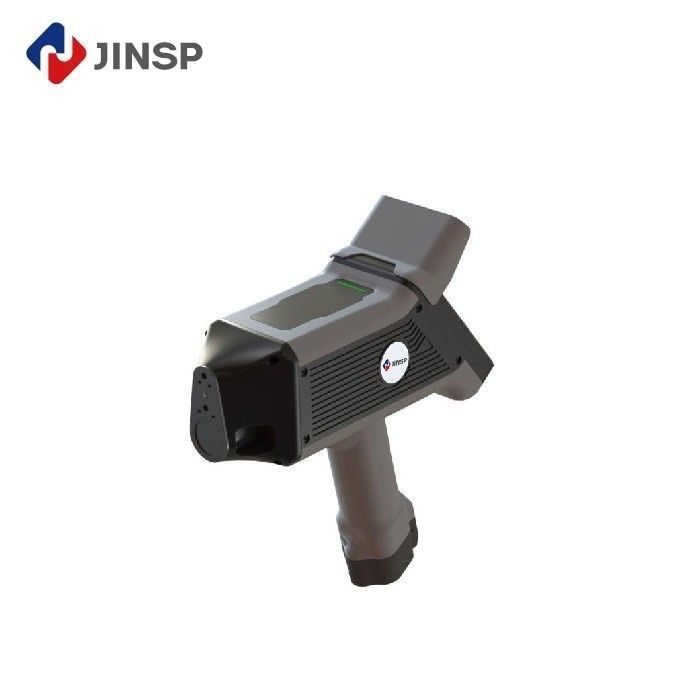

Idea Scrap Metal and alloy detection instrument Handheld LIBS
JINSP LB1000S is quick, accurate, and comprehensive! With just 5 seconds, the LB1000S, which utilizes eye-safe lasers, can reveal the precise content of alloy elements in the metal matrix for you. No cumbersome pretreatment is required, goodbye to complicated sample processing procedures!
Simply grind the surface of the matrix to expose a testing plane with a diameter of about 5mm, and you can easily start the analysis. Easy, simple, and efficient, allowing you to quickly obtain results on-site!
Choosing us is the perfect combination of safety, efficiency, intelligence, accuracy, compatibility, lightness, and portability! Let your inspection work become easier and more relaxed!
Specifications:
|
Detection Alloy Matrix
|
Aluminum based elements: Al,Si,Fe,Cu,Zn,Mg,Mn,Ni,Cr,Ti,Pb,Sn
Iron based elements: Fe,Cr,Ni,Mn,si,Ti,Cr,Mo,V,Co
Copper based elements: Cu,Zn,Mn,Al,Ni,Pb,Sn,Fe
|
|
Spectral range
|
180nm ~ 460nm
|
|
Laser wavelength
|
1535 nm, much safer for human eyes
|
|
Laser safety
|
Class1, the lowest risk among all the laser classes
|
|
Display screen
|
5.0-inch capacitive touch screen
|
|
Memory
|
16Gb
|
|
Working environment
|
Temperature: -5 to 40℃.
Humidity: ≤95%RH, no condensation
|
|
Sample types
|
Bulk solids, cylinders, sheets, wires with a diameter of 1mm or larger, thin slices,
large blocks, lines, particles
|
|
Communication mode
|
4G,Bluetooth,WIFI
|
|
Operating time
|
8 hours
|
Technical Highlights:
- Safe and worry-free: Using 1535nm CLASS 1 eye-safe lasers completely eliminates the hidden dangers of X-ray ionizing radiation. The externally limited device is carefully designed to effectively prevent laser misfiring, ensuring the safety of every user.
- Efficient and prompt: Whether it's thin sheets, large blocks, lines, or particles, we can quickly respond to various shapes of metals. Detection results can be issued within 5 seconds on site, making your workflow smoother and without any waiting.
- Intelligent recognition: Automatically identify the type of metal matrix to avoid human error and make the detection results more accurate. Additionally, the device integrates Beidou positioning, 4G/5G, and WIFI networking capabilities, allowing you to upload detection data to the business system in real time regardless of your location.
- Accurate and reliable: With full-element detection capabilities, it also demonstrates excellent detection results for light elements such as Al, Mg, and Si. This meets the precise analysis requirements of various industries, providing strong support for your business.
- Wide compatibility: Capable of detecting aluminum-based, copper-based, and iron-based matrices, it can perform quantitative analysis of various alloy elements such as Cr, Ni, Ti, V, Mn, Mg, etc. We also provide matrix customization services to meet your specific needs.
Typical Applications:
- Recycled metal recovery
- Utilization of recycled metals
- Scrap Metal & Alloy detection
Company Introduction:
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
We uphold the core value of "customer-centric" to ensure that every customer can enjoy unprecedented flexibility and personalized experience. From the initial concept to the final product, we work closely together to ensure that every detail is accurately aligned with customer expectations, and together create exclusive products that exceed expectations.
FAQ:
Q: What is the model number of the handheld element analyzer?
A: The model number of the handheld element analyzer is LB1000S.
Q: Where is the handheld element analyzer manufactured?
A: The handheld element analyzer is manufactured in China.
Q: What is the minimum order quantity for the handheld element analyzer?
A: The minimum order quantity for the handheld element analyzer is 1PC.
Q: What is the supply ability for the handheld element analyzer?
A: The supply ability for the handheld element analyzer is 20 PCS per month.
Q: What is the payment term for the handheld element analyzer?
A: The payment term for the handheld element analyzer is T/T.
Q: What is the delivery time for the handheld element analyzer?
A: The delivery time for the handheld element analyzer is around 30 working days.
