Quick Libs Metal Analyzer Comprehensive For Copper Based Metal Elements Analysis

Contact Now

Quick Libs Metal Analyzer Comprehensive For Copper Based Metal Elements Analysis

Minimum Order Quantity :	1PC	Price :	USD25800 - USD28600
Packaging Details :	1PC/BOX	Delivery Time :	30 working days
Payment Terms :	T/T	Supply Ability :	20 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S

Detail Information
Spectral Range Performance:	180nm ~ 460nm	Laser Wavelength:	1535nm
Laser Safety:	Class1	Continuous Working Time:	8h
Weight:	Approximate Weight With Battery: 1.9kg	WIFI:	2.4GHz 802.11n/b/a
Memory:	16Gb	Working Temperature:	-10℃ ~ +40℃
Highlight:	Quick Libs Metal Analyzer , Quick hand held libs , Comprehensive Libs Metal Analyzer

Product Description

Quick Libs Metal Analyzer Comprehensive For Copper Based Metal Elements Analysis

Product Attributes

Attribute	Value
Spectral range performance	180nm ~ 460nm
Laser wavelength	1535nm
Laser safety	Class1
Continuous working time	8h
Weight	Approximate weight with battery: 1.9kg
WIFI	2.4GHz 802.11n/b/a
Memory	16Gb
Working temperature	-10℃ ~ +40℃

Handheld LIBS Analyzer Laser For Copper Based Metal Elements Analysis

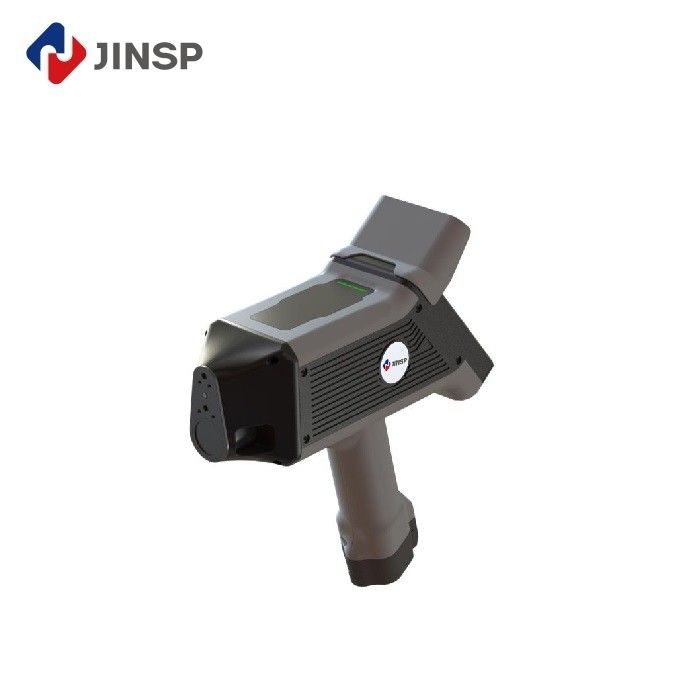

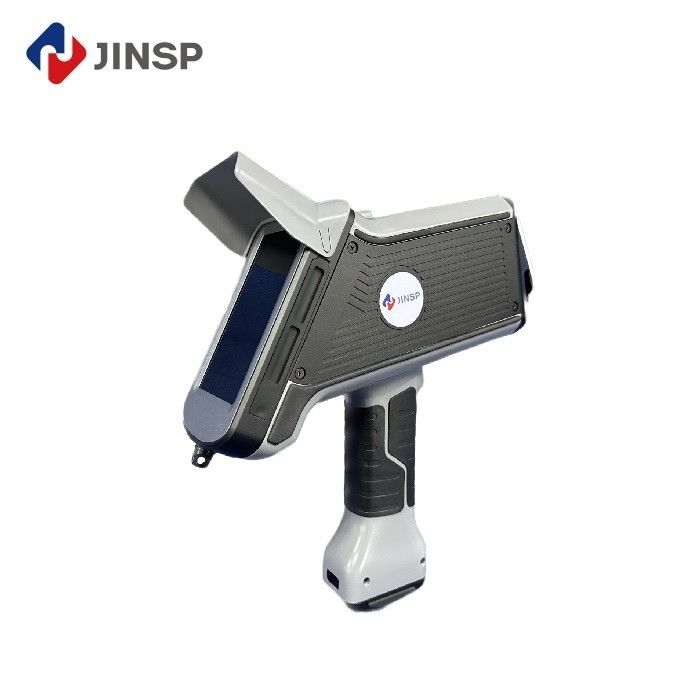

The JINSP LB1000S is a quick, accurate, and comprehensive metal analyzer. Utilizing eye-safe lasers, it can reveal precise element content in metal matrices within just 5 seconds. No cumbersome pretreatment required - simply grind the surface to expose a 5mm testing plane for immediate analysis.

Product Specifications

Detection Alloy Matrix	Elements
Aluminum based elements	Al, Si, Fe, Cu, Zn, Mg, Mn, Ni, Cr, Ti, Pb, Sn
Iron based elements	Fe, Cr, Ni, Mn, Si, Ti, Cr, Mo, V, Co
Copper based elements	Cu, Zn, Mn, Al, Ni, Pb, Sn, Fe
Spectral range	180nm ~ 460nm
Laser wavelength	1535 nm (eye-safe)
Laser safety	Class1 (lowest risk)
Display screen	5.0-inch capacitive touch screen
Memory	16Gb
Working environment	Temperature: -5 to 40℃, Humidity: ≤95%RH (no condensation)
Sample types	Bulk solids, cylinders, sheets, wires (≥1mm diameter), thin slices, large blocks, lines, particles
Communication mode	4G, Bluetooth, WIFI
Operating time	8 hours

Technical Highlights

Safe and worry-free: 1535nm CLASS 1 eye-safe lasers eliminate X-ray ionizing radiation risks with safety-focused design
Efficient and prompt: 5-second detection for various metal shapes (sheets, blocks, wires, particles)
Intelligent recognition: Automatic metal matrix identification with Beidou positioning and real-time data upload
Accurate and reliable: Full-element detection including light elements (Al, Mg, Si) for precise analysis
Wide compatibility: Detects aluminum, copper, and iron-based matrices with matrix customization available

Typical Applications

Grade identification and element analysis in scrap metal recycling
Incoming inspection, process control, and material reliability identification (PMI)
Mineral exploration and ore grade detection during mining operations

Company Introduction

JINSP Company Limited ("JINSP") is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 200+ patent applications and core technologies at international leading levels, JINSP offers over twenty spectroscopic products used nationwide and exported to 30+ countries (3,000+ units sold).

Supported by 30+ R&D engineers (including 4 Ph.D.), JINSP specializes in personalized product customization to meet diverse customer needs with innovative design capabilities.

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide an English manual and guide video, plus professional technical support from our technicians.

Q2: Can you offer an operation training?

A2: Training available at our factory or your location with JINSP engineers (installation, training, debugging, maintenance).

Q3: How to receive the best price in the shortest time?

A3: Provide detailed requirements (wavelength, detector, pixels, focal length) for a prompt quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: One-year warranty includes free repairs with technician diagnosis based on client feedback.

Q5: What about quality assurance?

A5: All goods undergo quality inspection before shipment with photos available for verification.
